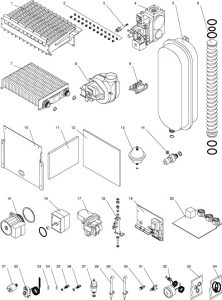

| 1 | KG2004 101/164 080 | 12 ramps burner | | |
| 2 | KG2004 106/379 102 | Injectors (inculding copper gaskets) | | |
| 3 | KG2004 117/379 083 | Gas modulator cartridge | | |
| 4 | KG2004 113/379 081 | Gas valve | | |
| 5 | KG2003 136/379 097 | Expansion vessel(including gasket) | | |
| 6 | KG2001 108/164 006 | D.h.w. bellows (including O-rings) | | |
| 7 | KG2003 157/164 079 | Main heat exchanger (including gaskets) | | |
| 8 | | Fan | | |
| 9 | KG2027 101/379 091 | Air pressure switch | | |
| 10 | KG2017 106/164 163 | Front combustion chamber insulation panel | | |
| 11 | KG2017 109/164 166 | Side combustion chamber insulation panel | | |
| 12 | KG2017 101/164 159 | Rear combustion chamber insulation panel | | |
| 13 | KG2001 130/386 714 | D.h.w.expansion vessel(optional) | | |
| 14 | KG2005 108/379 085 | Safety valve (including gaskets) | | |
| 15 | KG2002 132/164 056 | Pump (including gasket) | | |
| 16 | KG2002 103/379 092 | 3 way valve (including shutter and O-ring) | | |
| 17 | KG2003 152/164 074 | Main circuit flow switch | | |
| 18 | KG2001 113/164 011 | D.h.w flow switch (complete) | | |
| 19 | KG2006 122/164 126 | Electronic regulation p.c.b. | | |
| 20 | KG2006 106/164 112 | Full sequence control p.c.b. | | |
| 21 | KG2002 129/379 080 | Pump pressure switch | | |
| 22 | KG2006 112/379 086 | Overhear thermostat | | |
| 23 | KG2006 115/164 119 | Fuse 0,08 A T (F1) | | |
| 24 | KG2006 116/164 120 | Fuse 1,6 A T (F2) | | |
| 25 | KG2001 128/164 026 | D.h.w temperature probe (including gasket) | | |
| 26 | KG2001 128/164 026 | Main circuit temp.probe (including gasket) | | |
| 27 | KG2001 101/379 079 | Automatic air release valve (including O-ring) | | |
| 28 | KG2004 102/164 081 | Ignition electrode | | |
| 29 | KG2004 102/164 081 | detection electrode | | |
| 30 | KG2006 128/379 088 | Shut down warning light | | |
| 31 | KG2006 111/379 087 | Reset push button | | |
| 32 | KG2006 113/164 117 | Temperature-pressure gauge (including gasket) | | |
| 33 | KG2009 101/164 210 | Flat gasket pack (complete) | | |
| 34 | KG2009 102/164 211 | O-ring pack (complete) | | |
